3GPP协议详情编号实用标准协议详情之3GPP实用标准协议详情.doc

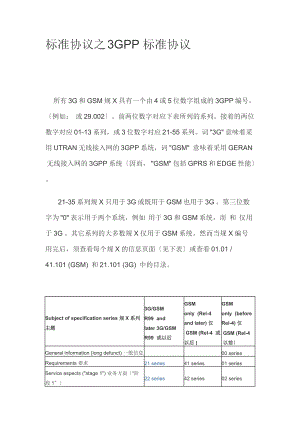

标准协议之 3GPP标准协议 所有 3G 和 GSM 规X具有一个由 4 或 5 位数字组成的 3GPP 编号。例如: 或 29.002。前两位数字对应下表所列的系列。接着的两位数字对应 01-13 系列,或 3 位数字对应 21-55 系列。词 "3G" 意味着采用 UTRAN 无线接入网的 3GPP 系统,词 "GSM" 意味着采用 GERAN 无线接入网的 3GPP 系统因而, "GSM" 包括 GPRS 和 EDGE 性能。 21-35 系列规X只用于 3G 或既用于 GSM 也用于 3G 。第三位数字为 "0" 表示用于两个系统,例如 用于 3G 和 GSM 系统,而 和 仅用于 3G 。其它系列的大多数规X仅用于 GSM 系统。然而当规X编号用完后,须查看每个规X的信息页面见下表或查看 01.01 / 41.101 (GSM) 和 21.101 (3G) 中的目录。 Subject of specification series 规X系列主题3G/GSM R99 and later 3G/GSM R99 或以后GSM only (Rel-4 and later) 仅 GSM (Rel-4 或以后 )GSM only (before Rel-4) 仅 GSM (Rel-4 以前General information (long defunct) 一般信息 00 seriesRequirements 要求21 series41 series01 seriesService aspects ("stage 1") 业务方面“阶段122 series42 series02 seriesTechnical realization ("stage 2") 技术实现“阶段223 series43 series03 seriesSignalling protocols ("stage 3") - user equipment to network 信令协议“阶段3“:用户设备-网络24 series44 series04 seriesRadio as pects 射频方面25 series45 series05 seriesCODECs 编解码26 series46 series06 seriesData 数据27 series47 series (none exists) 不存在07 seriesSignalling protocols ("stage 3") -(RSS- 信令协议“阶段3:(RSS-28 series48 series08 seriesSignalling protocols ("stage 3") - intra-fixed-network 信令协议“阶段3:与固定网络之间29 series49 series09 seriesProgramme management 程序管理30 series50 series10 seriesUser Identity Module (SIM / USIM) 用户识别模块 (SIM / USIM)31 series51 series11 seriesO&M 运营和维护32 series52 series12 seriesAccess requirements and test specifications 接入要求和测试规X 13 series (1)13 series (1)Security aspects 安全方面33 series(2)(2)SIM and test specifications SIM和测试规X34 series(2)11 seriesSecurity algorithms (3) 加密算法35 series55 series(4)Note (1): The 13 series GSM specifications relate to European-Union-specific regulatory standards. On the closure of ETSI TC SMG, responsibility for these specifications was transferred to ETSI TC MSG, (Mobile Specification Group) and they do not appear on the 3GPP file server. Note (2): The specification of these aspects are spread throughout several series. Note (3): Algorithms may be subject to export licencing conditions. See the relevant 3GPP page. See also the relevant ETSI pages. Note (4): The original GSM algorithms are not published and are controlled by the GSM Association. 注释 1 : 13 系列 GSM 规X与欧盟规X管理标准有关。这些规X由 ETSI TC MSG, (Mobile Specification Group) 负责,不出现在 3GPP 文件中。 注释 2 :这方面的规X分散在几个系列中。 注释 3 :算法可能受出口许可条件的限制,参见相关的 3GPP 网页或 ETSI 网页。 注释 4 :最初的 GSM 算法没有公开,由 GSM 协会控制。 The 3GPP Specifications are stored on the file server as zipped MS-Word files. The filenames have the following structure:where the character fields have the following significance .S = series number - 2 characters (see the table above) M = mantissa (the part of the spec number after the series number) - 2 or 3 characters (see above) P = optional part number - 1 or 2 digits if present Q = optional sub-part number - 1 or 2 digits if present V = version number, without separating dots - 3 digitsSo for example: 3GPP 规X采用 WORD 文件的 ZIP 压缩格式保存,文件名结构如下: S= 系列号 - 两位数字见上表 M= 尾数规X编号中系列号后面的局部 -2 或 3 位数字 P= 可选的局部编号 -1 或 2 位数字,如果有 Q= 可选的子局部编号 -1 或 2 位数字,如果有 V= 版本号,无分隔点 -3 位数字例如: 21900-320.zip 是 3GPP TR 21.900 版本 0408-6g0.zip 是 3GPP TS 04.08 版本 32111-4-410 是 3GPP TS 32.111 局部 4 版本 29998-04-1-100 是 3GPP TS 29.998 局部 4 子局部 1 版本 -好好研究下这个 就明白了 每一个小类后面都有说明的- mark。协议里给的是结果,最近看协议想了解其原理,可惜不知道如何查找提案。比如不知道PUCCH设计的原理,想查一下相关的提案却不知道如何查,有明白的xd给指点一下。另外, 下面是不是放的就是提案?-TS 21.101 Technical Specifications and Technical Reports for a UTRAN-based 3GPP system SP Yes TS 21.111 USIM and IC card requirements C6 Yes TS 21.133 3G security; Security threats and requirements S3 Yes TR 21.801 Specification drafting rules SP No TR 21.900 Technical Specification Group working methods SP Yes TR 21.905 Vocabulary for 3GPP Specifications S1 Yes TS 22.001 Principles of circuit telemunication services supported by a Public Land Mobile Network (PLMN) S1 Yes TS 22.002 Circuit Bearer Services (BS) supported by a Public Land Mobile Network (PLMN) S1 Yes TS 22.003 Circuit Teleservices supported by a Public Land Mobile Network (PLMN) S1 Yes TS 22.004 General on supplementary services S1 Yes TS 22.011 Service accessibility S1 Yes TS 22.016 International Mobile Equipment Identities (IMEI) S1 Yes TS 22.022 Personalisation of Mobile Equipment (ME); Mobile functionality specification S3 Yes TS 22.024 Description of Charge Advice Information (CAI) S1 Yes TS 22.030 Man-Machine Interface (MMI) of the User Equipment (UE) S1 Yes TS 22.031 Fraud Information Gathering System (FIGS); Service description; Stage 1 S3 Yes TS 22.032 Immediate Service Termination (IST); Service description; Stage 1 S3 Yes TS 22.034 High Speed Circuit Switched Data (HSCSD); Stage 1 S1 Yes TS 22.038 USIM/SIM Application Toolkit (USAT/SAT); Service description; Stage 1 S1 Yes TS 22.041 Operator Determined Call Barring S1 Yes TS 22.042 Network Identity and Time Zone (NITZ) service description; Stage 1 S1 Yes TS 22.048 Security mechanisms for the (U)SIM application toolkit; Stage 1 C6 Yes TS 22.053 Tandem Free Operation (TFO); Service description; Stage 1 S4 Yes TS 22.057 Mobile Execution Environment (MExE) service description; Stage 1 S1 Yes TS 22.060 General Packet Radio Service (GPRS); Service description; Stage 1 S1 Yes TS 22.066 Support of Mobile Number Portability (MNP); Stage 1 S1 Yes TS 22.067 enhanced Multi-Level Precedence and Pre-emption service (eMLPP); Stage 1 S1 Yes TS 22.071 Location Services (LCS); Stage 1 S1 Yes TS 22.072 Call Deflection (CD); Stage 1 S1 Yes TS 22.076 Noise suppression for the AMR codec; Service description; Stage 1 S4 Yes TS 22.078 Customized Applications for Mobile network Enhanced Logic (CAMEL); Service description; Stage 1 S1 Yes TS 22.079 Support of optimal routeing; Stage 1 S1 Yes TS 22.081 Line Identification supplementary services; Stage 1 S1 Yes TS 22.082 Call Forwarding (CF) Supplementary Services; Stage 1 S1 Yes TS 22.083 Call Waiting (CW) and Call Hold (HOLD) supplementary services; Stage 1 S1 Yes TS 22.084 MultiParty (MPTY) supplementary service; Stage 1 S1 Yes TS 22.085 Closed User Group (CUG) supplementary services; Stage 1 S1 Yes TS 22.086 Advice of Charge (AoC) supplementary services; Stage 1 S1 Yes TS 22.087 User-to-user signalling (UUS); Stage 1 S1 Yes TS 22.088 Call Barring (CB) supplementary services; Stage 1 S1 Yes TS 22.090 Unstructured Supplementary Service Data (USSD); Stage 1 S1 Yes TS 22.091 Explicit Call Transfer (ECT) supplementary service; Stage 1 S1 Yes TS 22.093 pletion of Calls to Busy Subscriber (CCBS); Service description, Stage 1 S1 Yes TS 22.094 Follow Me service description - Stage 1 S1 Yes TS 22.096 Name identification supplementary services; Stage 1 S1 Yes TS 22.097 Multiple Subscriber Profile (MSP) Phase 1; Service description - Stage 1 S1 Yes TS 22.101 Service aspects; Service principles S1 Yes TS 22.105 Services and service capabilities S1 Yes TS 22.115 Service Aspects Charging and billing S1 Yes TR 22.121 Service aspects; The Virtual Home Environment (VHE); Stage 1 S1 Yes TS 22.127 Service Requirement for the Open Services Access (OSA); Stage 1 S1 Yes TS 22.129 Handover requirements between UTRAN and GERAN or other radio systems S1 Yes TS 22.135 Multicall; Service description; Stage 1 S1 Yes TS 22.140 Multimedia Messaging Service (MMS); Stage 1 S1 Yes TS 23.002 Network architecture S2 Yes TS 23.003 Numbering, addressing and identification C4 Yes TS 23.007 Restoration procedures C4 Yes TS 23.008 Organisation of subscriber data C4 Yes TS 23.009 Handover procedures C1 Yes TS 23.011 Technical realization of Supplementary Services C4 Yes TS 23.012 Location management procedures C4 Yes TS 23.014 Support of Dual Tone Multi Frequency (DTMF) signalling C1 Yes TS 23.015 Technical realization of Operator Determined Barring (ODB) C4 Yes TS 23.016 Subscriber data management; Stage 2 C4 Yes TS 23.018 Basic Call Handling; Technical realization C4 Yes TS 23.031 Fraud Information Gathering System (FIGS); Service description; Stage 2 S3 Yes TS 23.032 Universal Geographical Area Description (GAD) S2 Yes TS 23.034 High Speed Circuit Switched Data (HSCSD); Stage 2 C1 Yes TS 23.035 Immediate Service Termination (IST); Stage 2 S3 Yes TS 23.038 Alphabets and language-specific information C1 Yes TR 23.039 Interface Protocols for the Connection of Short Message Service Centers (SMSCs) to Short Message Entities (SMEs) C1 Yes TS 23.040 Technical realization of Short Message Service (SMS) C1 Yes TS 23.041 Technical realization of Cell Broadcast Service (CBS) C1 Yes TS 23.042 pression algorithm for SMS T2 Yes TS 23.048 Security mechanisms for the (U)SIM application toolkit; Stage 2 C6 Yes TS 23.053 Tandem Free Operation (TFO); Service description; Stage 2 S4 Yes TS 23.057 Mobile Execution Environment (MExE); Functional description; Stage 2 S1 Yes TS 23.060 General Packet Radio Service (GPRS); Service description; Stage 2 S2 Yes TS 23.066 Support of GSM Mobile Number Portability (MNP) stage 2 C4 Yes TS 23.067 Enhanced Multi-Level Precedence and Pre-emption Service (eMLPP); Stage 2 C4 Yes TS 23.072 Call Deflection Supplementary Service; Stage 2 C4 Yes TS 23.078 customized Applications for Mobile network Enhanced Logic (CAMEL); Stage 2 C4 Yes TS 23.079 Support of Optimal Routeing (SOR); Technical realization; Stage 2 C4 Yes TS 23.081 Line Identification supplementary services; Stage 2 C4 Yes TS 23.082 Call Forwarding (CF) Supplementary Services; Stage 2 C4 Yes TS 23.083 Call Waiting (CW) and Call Hold (HOLD) Supplementary Service; Stage 2 C4 Yes TS 23.084 MultiParty (MPTY) Supplementary Service; Stage 2 C4 Yes TS 23.085 Closed User Group (CUG) Supplementary Service; Stage 2 C4 Yes TS 23.086 Advice of Charge (AoC) Supplementary Service; Stage 2 C4 Yes TS 23.087 User-to-User Signalling (UUS) supplementary service; Stage 2 C4 Yes TS 23.088 Call Barring (CB) Supplementary Service; Stage 2 C4 Yes TS 23.090 Unstructured Supplementary Service Data (USSD); Stage 2 C4 Yes TS 23.091 Explicit Call Transfer (ECT) Supplementary Service; Stage 2 C4 Yes TS 23.093 Technical realization of pletion of Calls to Busy Subscriber (CCBS); Stage 2 C4 Yes TS 23.094 Follow Me Stage 2 C4 Yes TS 23.096 Name Identification Supplementary Service; Stage 2 C4 Yes TS 23.097 Multiple Subscriber Profile (MSP) Phase 1; Stage 2 C4 Yes TS 23.101 General UMTS Architecture S2 Yes TS 23.107 Quality of Service (QoS) concept and architecture S2 Yes TS 23.108 Mobile radio interface layer 3 specification core network protocols; Stage 2 (structured procedures) C1 Yes TS 23.110 UMTS Access Stratum Services and Functions S2 Yes TS 23.116 Super-Charger technical realization; Stage
